Retrospec Koa Rev 2 Step-Through Review: Tested on Pavement, Gravel, and Everything in Between
Retrospec Koa Rev 2 Step-Through review: real-world range tests, hill climbing results, and honest pros and cons. Best electric fat bike under $1,500?
Quick Summary
The Retrospec Koa Rev 2 Step-Through is a no-nonsense electric fat bike that punches well above its $1,499 price tag. It handles casual trails and daily commutes with equal confidence, and its step-through frame makes it genuinely accessible for riders who've been locked out of the fat bike world by awkward high-step designs. The 500W motor isn't flashy, but it gets the job done smoothly.
Best for: Beginner to intermediate riders who want an all-terrain capable electric fat bike for commuting, light trails, and weekend exploring without spending $2,000.
Not ideal for: Serious off-road riders tackling steep climbs or technical singletrack, taller riders over 6'0" who may find the reach cramped, and anyone who demands the longest range possible from a single charge.
Performance Rating Matrix
Overall Rating
7.6/10
Strong everyday performer with real-world range that falls short of brand claims, but delivers on comfort and value
Rating Metric
Our Rating
Ride Quality
8.5
Components
7.5
Screen/App
7.0
Range
7.5
Hill Climbing
6.5
Pros and Cons
What We Like
- Step-through frame with a low 16.5" standover height makes getting on and off incredibly easy, even for shorter riders or those with limited mobility
- 4" fat tires genuinely absorb road chatter. Riding over cracked pavement or packed gravel feels smoother than you'd expect at this price
- Tektro mechanical disc brakes with 180mm rotors deliver confident stopping power in both wet and dry conditions, outperforming the brakes you'll find on most competing bikes under $1,500
- Six pedal assist levels plus a push-to-go throttle give you a ton of flexibility, whether you want a workout or just want to cruise without breaking a sweat
- UL2271 battery certification is a genuine safety win that many budget competitors skip
What Could Be Better
- Real-world range lands between 22 and 40 miles depending on assist level. The 52-mile claim is technically achievable only under near-perfect, low-assist conditions
- The cadence sensor delivers power in an all-or-nothing burst rather than a smooth, progressive response, which can feel abrupt at low speeds and slightly drains efficiency compared to a torque sensor
- Steep climbs above roughly 10-12% grade expose the 500W motor's limits, especially on throttle-only; expect to drop into PAS 1 and pedal actively on serious hills
- Retrospec publishes almost no geometry data, so figuring out whether this bike fits you before you buy requires some guesswork, which is frustrating for taller riders especially
Key Specifications
Motor & Battery
- Motor
- 500W rear hub motor
- Battery
- 48V / 500Wh (LG 21700 cells, UL2271 certified)
- Claimed range
- Up to 52 miles
- Charger
- Standard charger, charges on or off the bike
Performance
- Top speed
- 20 mph (Class 2) / 28 mph (Class 3 unlockable)
- Assist modes
- 6 PAS levels + push-to-go throttle
- Sensor type
- Cadence sensor
- Ride character
- Smooth, stable cruiser with lively edge
Frame & Build
- Frame style
- Step-through, 16.5" standover height
- Frame material
- 6061 hydroformed aluminum
- Fork
- 80mm suspension fork with preload adjustment
- Weight capacity
- 300 lbs
Components
- Brakes
- Tektro mechanical disc, 180mm rotors
- Drivetrain
- Shimano Tourney 7-speed
- Tires
- 26" x 4" fat MTB tires
- Lights
- 60-lux integrated front headlight + rear brake light
Price and Value
MSRP: $1,499. For that price, you're getting a 500W motor, a 500Wh battery with LG cells, 80mm front suspension, Tektro disc brakes with upgraded 180mm rotors, and a step-through aluminum frame. That's a genuinely competitive spec sheet, and Retrospec doesn't cheap out where it counts.
Is it worth the money? Honestly, yes, with one caveat. If you're a heavier rider or planning to tackle steeper terrain regularly, the Koa Rev 2 will show its limits. But for the rider who wants a comfortable, capable electric fat bike for mixed-surface riding and doesn't want to spend $1,800+, this is one of the smarter buys in the category right now.
The most obvious alternative is the Rad Power RadRover 6 Plus, which runs around $1,699 and offers a bigger battery and a more polished display. It's the better pick if range is your top priority. But the Koa Rev 2 undercuts it by $200 and edges it out on brake quality with those 180mm Tektro rotors.
If you want to stay within the Retrospec family and want more, the Koa Rev+ 2 steps up to a 750W motor, 720Wh battery, torque sensor, and hydraulic brakes at $1,899. It's genuinely worth the extra $400 for regular off-road riding or if you're a heavier rider who wants stronger hill climbing.
Design and Build Quality

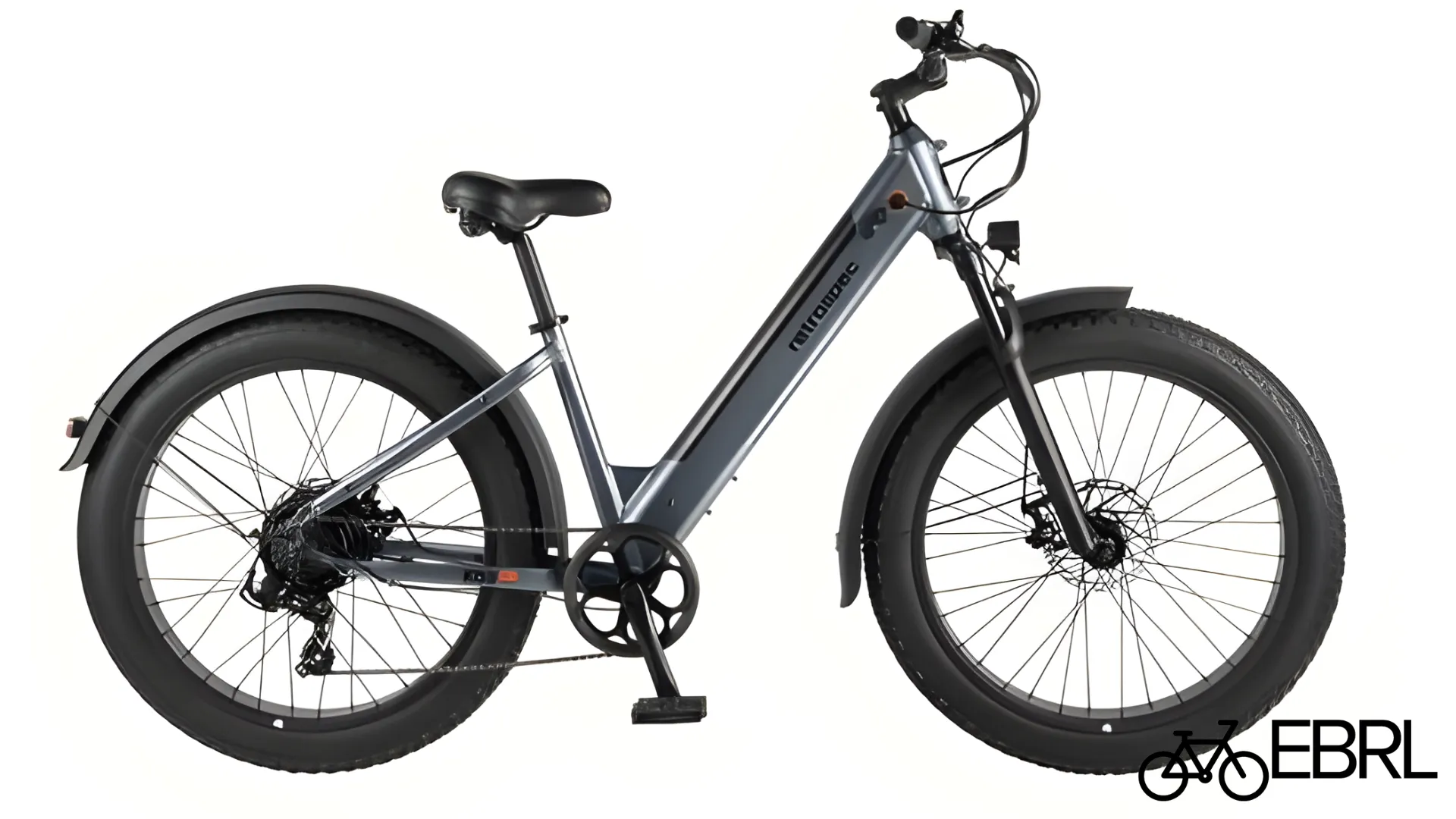

The hydroformed 6061 aluminum frame with integrated downtube battery keeps the profile cleaner than most fat bikes at this price
The Koa Rev 2 uses a 6061 hydroformed aluminum frame with a thicker downtube to house the integrated battery. Retrospec kept the frame tubing slimmer than most fat bikes at this price, which makes it look less bloated and actually gives it a cleaner silhouette. It comes in Matte Graphite and Moss Green. Both are solid, tasteful choices that age well.
The step-through geometry puts you in a comfortable, upright riding position. Handlebar reach and stack height felt natural during testing, and the saddle, while on the wider side, is genuinely plush, not the cheap afterthought you sometimes get at this price point.
Cable routing is tidy without being exceptional. The derailleur cable exposed under the bottom bracket is a known weak spot that one reviewer flagged as a damage risk on rougher trails. Worth keeping an eye on.
Overall build quality feels honest and appropriate for the price. There's no premium flex or carbon-fiber pretension here. It's a practical, well-assembled bike that holds up to regular use.
Motor Performance and Power

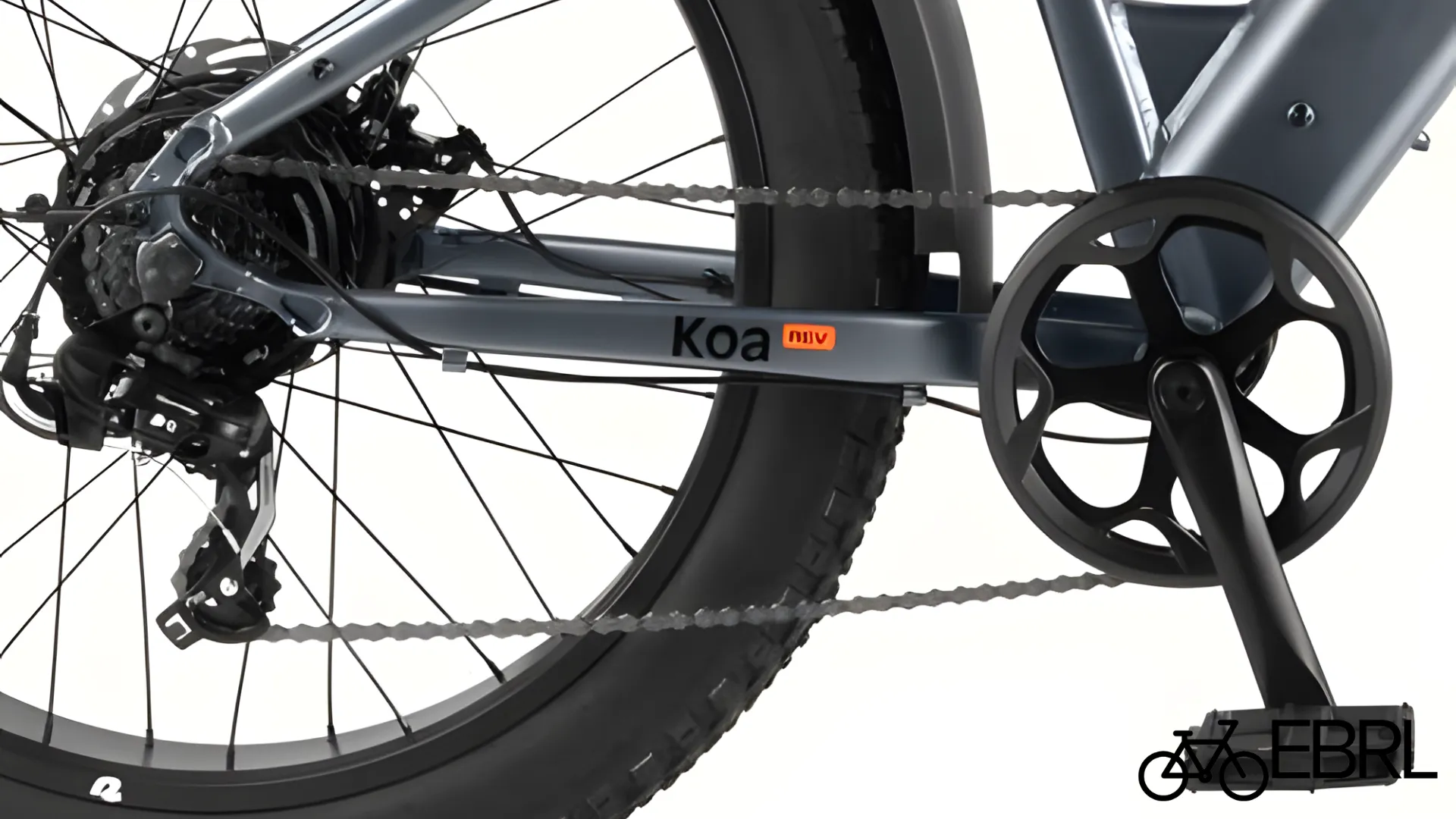

The 500W rear hub motor handles flat terrain and moderate grades with ease
The 500W rear hub motor delivers power smoothly at moderate assist levels. Pull away from a stop in PAS 2 or 3 and you get a steady, confidence-inspiring push rather than a jarring lurch. That said, the cadence sensor means the motor reads pedaling motion rather than pedaling effort, so don't expect the seamless, intuitive response of a torque-sensor bike. It's more of an on/off relay than a smooth ramp.
Across six assist levels, the difference between PAS 1 and PAS 6 is noticeable and useful. PAS 1 gives you a light assist that makes the bike feel like a lightly powered bicycle. PAS 6 pushes you up to the 20 mph Class 2 cap confidently, and Class 3 mode (unlockable) takes it to 28 mph if your local laws allow.
Hill climbing is where you'll feel the 500W ceiling most clearly. Testing showed the throttle-only mode struggling on inclines above 12%, and PAS becomes noticeably slow on steep grades. Active pedaling in a lower gear keeps you moving, but this isn't a bike that will float up a steep San Francisco block without some legwork.
Battery and Range Test

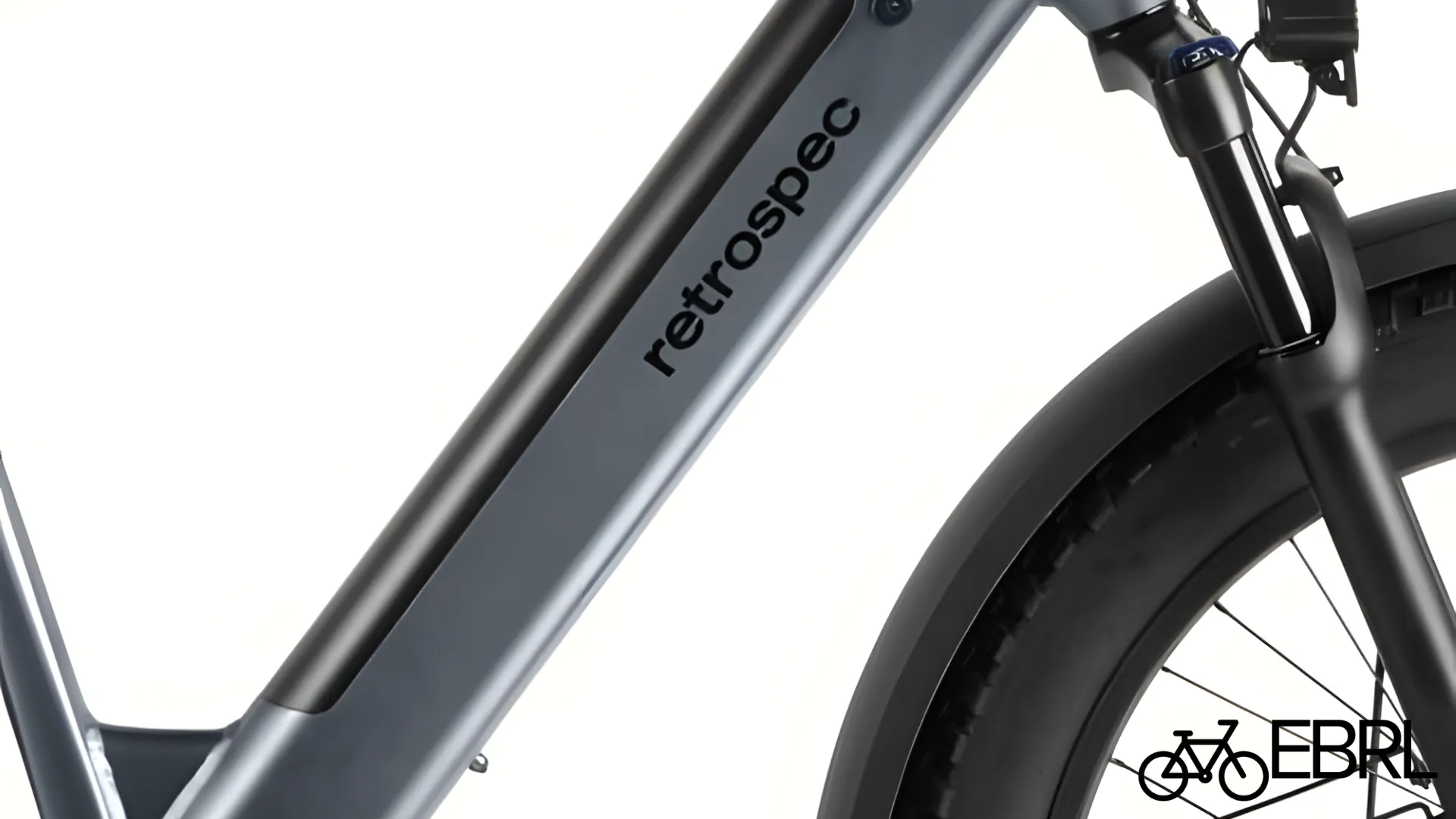

The 500Wh removable battery charges both on and off the bike for flexible convenience
Retrospec claims up to 52 miles per charge. In real-world testing, that number tells only part of the story. At maximum assist (PAS 6), expect around 22 to 24 miles before the battery gives out. Drop to PAS 1 and that number climbs to roughly 40 miles. The 52-mile figure appears to represent an optimistic best-case: steady pedaling, flat terrain, lighter rider, minimal throttle use.
Charging the 500Wh battery takes a few hours from empty to full. The removable design is genuinely practical. You can pull it off and charge it indoors from a standard outlet, which matters if you're parking outside.
For most daily commutes under 15 miles round-trip, range isn't going to be an issue at all. The battery is honest for its size. The 500Wh pack is on the smaller side compared to what the 2025 market now considers standard (600-800Wh), so if you're planning longer weekend rides, pack a plan for a mid-trip charge or stick to PAS 1-2.
Ride Quality and Comfort

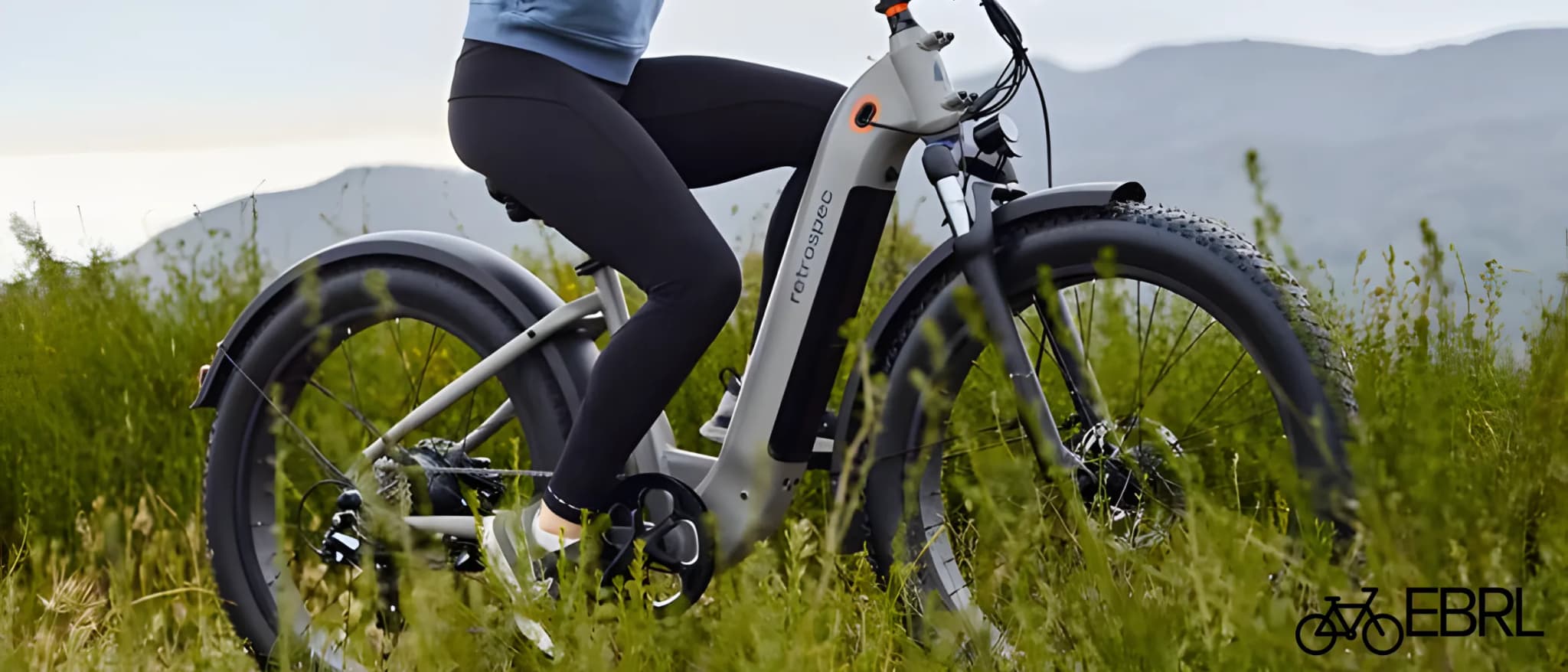

The step-through frame and wide tires make for an easy, comfortable ride on almost any surface
This is honestly where the Koa Rev 2 surprises you. The 26" x 4" fat tires soak up surface imperfections in a way that borderline spoils you. On cracked sidewalks, gravel paths, and hard-packed dirt, the bike just floats. Add the 80mm suspension fork and the plush saddle, and after an hour in the saddle you're not fighting fatigue or pressure points.
Handling is stable without being sluggish. The 700mm handlebar and wide tire contact patch give you a planted, confident feel around corners. It's not nimble in the way a narrow-tire commuter is nimble, but it corners predictably and recovers easily from minor surface surprises.
One note for heavier riders: the suspension fork is on the softer side. At 230 lbs, multiple testers found even maximum preload wasn't quite firm enough. If that describes you, the Koa Rev+ 2 with its upgraded fork is worth the extra spend.
Components and Features

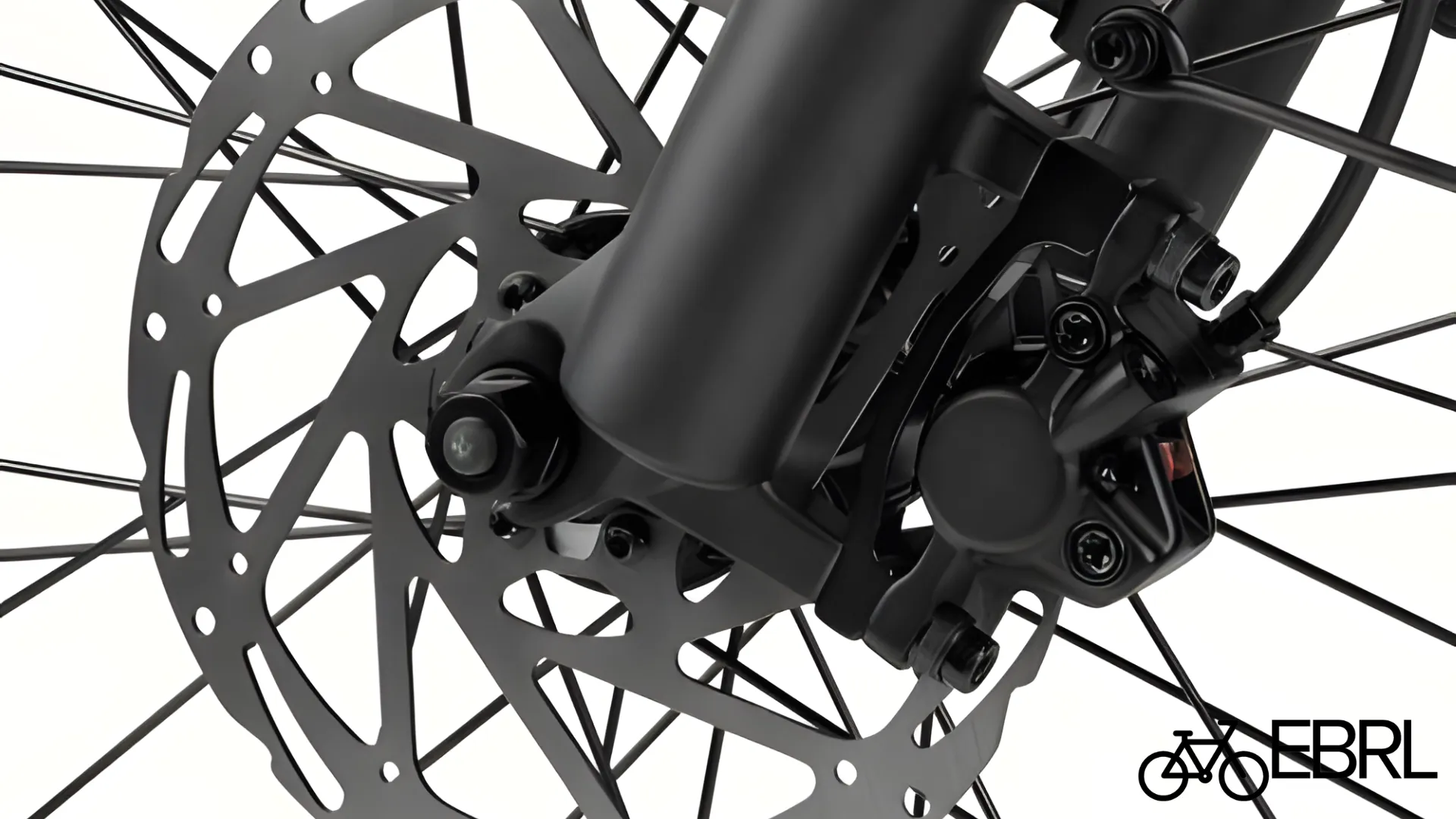

Upgraded 180mm Tektro disc brakes offer reliable stopping power well above the category norm
The Tektro mechanical disc brakes with 180mm rotors are a genuine highlight. In testing, stopping power was confident in both dry and wet conditions, and modulation was better than what you typically find on bikes at this price. Multiple reviewers noted the brakes outperformed similar e-bikes they'd tested. The trade-off with mechanical discs over hydraulic is that cable tension needs occasional adjustment. That's not a dealbreaker, just a maintenance reality.
The Shimano Tourney 7-speed drivetrain is entry-level but appropriate. Shifts are reasonably crisp when tuned correctly, and the gear range gives you enough steps to manage assisted climbs without bouncing between extremes. Don't expect Deore-level precision, but it's reliable.
The 4" fat tires offer solid traction on mixed surfaces. Riders reported good grip on packed dirt and gravel, though the tires aren't designed for deep mud or true singletrack. Think of them as all-condition rather than all-terrain.
Integrated front and rear lights are a real plus. The 60-lux headlight upgrade is noticeably brighter than what earlier Koa models had, and the rear light activates with braking. Fenders are included standard, which is more than a lot of competitors bother with.
Display, App, and User Experience

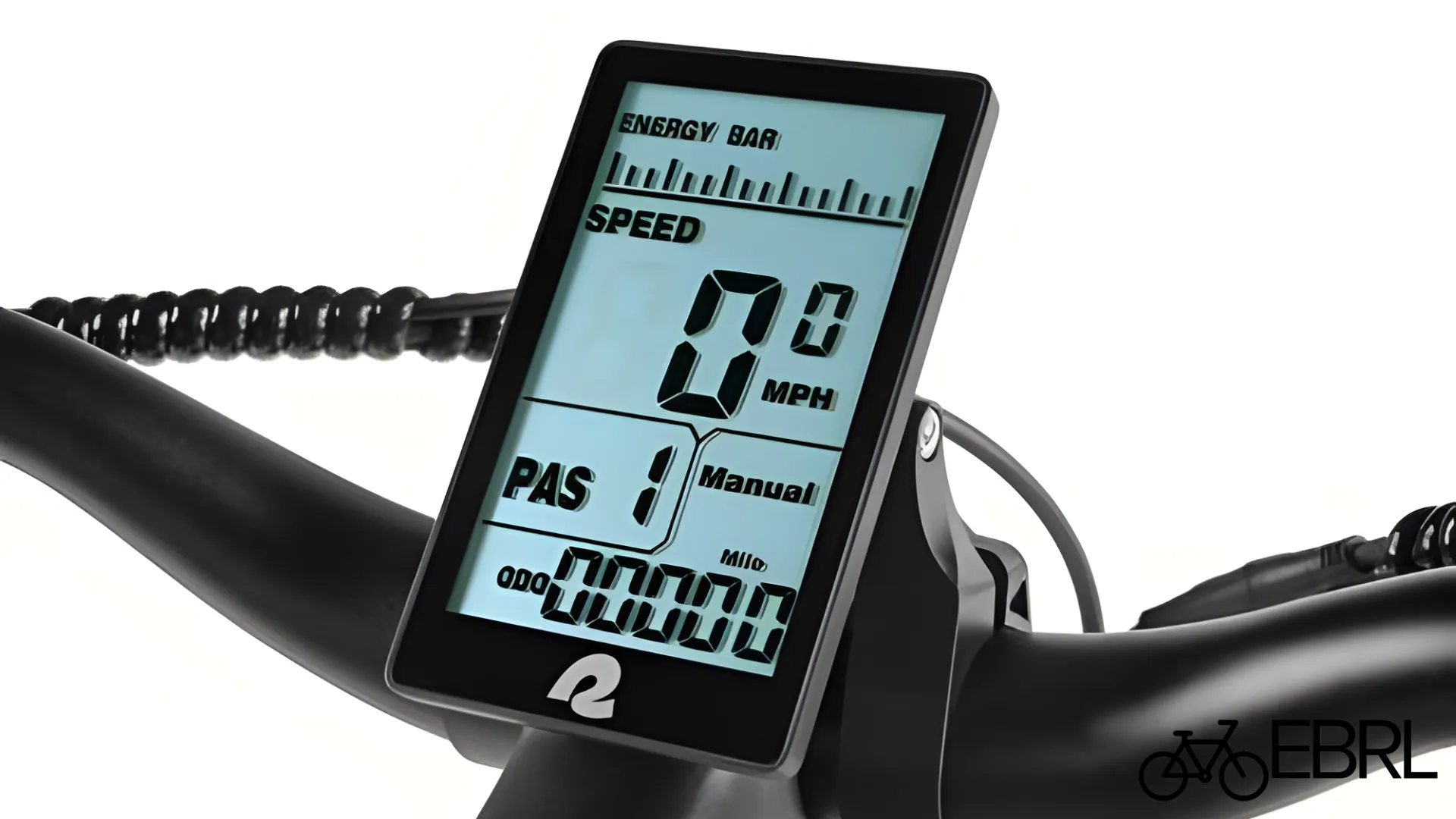

Simple, functional display with intuitive handlebar pod controls everything you need while riding
The center-mounted display shows your speed, assist level, battery life, and trip data. It's readable in most conditions, though bright midday sun can wash it out a little. Nothing fancy, but functional. You won't be distracted squinting at it while navigating traffic.
The handlebar-mounted button pod controls assist levels, lights, the throttle, and walk mode. The layout makes sense after a few minutes of use. Walk mode is one of those features that sounds trivial until you're pushing a 65+ lb e-bike up a ramp, at which point you'll consider it essential.
Retrospec doesn't currently offer a companion app for the Koa Rev 2, which keeps things simple but does mean no ride tracking, custom PAS tuning, or firmware updates through your phone. For most riders this won't matter. For the tech-enthusiast crowd, it's a gap worth knowing about before you buy.
Who This E-Bike Is For
Commuters: The Koa Rev 2 Step-Through is a solid daily commuter for rides under 15 miles round-trip. The fenders keep road spray off, the lights are genuinely bright, and the step-through frame makes repeated mounting and dismounting easy at intersections. It's heavier than a dedicated commuter bike, so locking it securely matters, and you'll want a solid U-lock.
Casual riders and beginners: This is arguably the sweet spot. The step-through frame, wide tires, and upright riding position are deeply confidence-inspiring for new riders or anyone returning to cycling after a long break. You don't need to be an experienced cyclist to feel comfortable on this bike within the first five minutes.
Off-road riders: Light trails, gravel paths, and hard-packed dirt are well within this bike's capabilities. That said, be honest with yourself about the limitations. Steep singletrack, serious climbs, and deep mud are outside what the 500W motor and standard fork are set up to handle comfortably. If off-road is your primary focus, the Koa Rev+ 2 is the better tool.
Alternatives to Consider
Retrospec Koa Rev 2 vs Rad Power RadRover 6 Plus
Choose the Koa Rev 2 if...
- Budget matters and you want to stay at $1,499 without compromising on brake quality
- You prefer a step-through frame for easy on/off and an upright riding position
- Your rides are mostly flat to mildly hilly and 20-25 miles per charge is enough
Choose the RadRover 6 Plus if...
- You want a larger battery and prioritize squeezing maximum range out of each charge
- You're a heavier rider who needs more motor muscle on hills
- You value Rad Power's established service network and accessory ecosystem
Retrospec Koa Rev 2 vs Retrospec Koa Rev+ 2
Choose the Koa Rev 2 if...
- You're on a tighter budget and primarily ride flat to moderate terrain
- You're a newer rider who doesn't need maximum power output
- The $400 savings matters more than torque sensor responsiveness
Choose the Koa Rev+ 2 if...
- You ride hilly terrain regularly and want the 750W motor and torque sensor
- You're a heavier rider or plan to carry cargo frequently
- You want the longer 72-mile claimed range and hydraulic disc brakes
Final Verdict
The Retrospec Koa Rev 2 Step-Through is a well-balanced electric fat bike that gets the fundamentals right. The ride quality is genuinely pleasant, the brakes are better than the price suggests, and the step-through frame opens this category up to riders who've been hesitant. It falls short on range relative to manufacturer claims and struggles on steep hills, so it's not the right tool for every job.
If you're a beginner or intermediate rider looking for a capable, comfortable electric fat bike under $1,500 for commuting, neighborhood cruising, or light trail riding, the Koa Rev 2 Step-Through deserves serious consideration. If you're regularly climbing steep grades, hauling heavy loads, or planning long weekend rides, spend the extra $400 for the Koa Rev+ 2. It's the version that removes the compromises.
FAQs
Is the Retrospec Koa Rev 2 Step-Through good for commuting?
Yes, for commutes up to about 12-15 miles each way. The bike has integrated front and rear lights, full fenders to handle wet roads, and a step-through frame that makes repeated stops easy. It's on the heavier side (around 65 lbs), so you'll want a quality lock and ideally a place to store it securely. If your commute involves steep hills, plan to pedal actively in lower gears. The 500W motor needs some help on serious grades.
How fast does the Koa Rev 2 Step-Through go?
In its default Class 2 setting, the bike tops out at 20 mph with pedal assist. Retrospec allows Class 3 unlocking, which raises the assist limit to 28 mph, though Class 3 use typically requires riders to be 16+ and may restrict access to certain bike paths depending on your local laws. The throttle is also Class 2 rated at 20 mph.
What is the real-world range of the Koa Rev 2?
In independent testing, the Koa Rev 2 achieved around 22-24 miles at maximum assist (PAS 6) and roughly 40 miles at the lowest assist level (PAS 1). Retrospec's 52-mile claim represents an optimistic ceiling achievable under ideal conditions. For practical planning, expect 25-35 miles on mixed assist with a 180-pound rider on relatively flat terrain. Rider weight, hills, and throttle use will all pull that number down.
Is the Retrospec Koa Rev 2 worth buying in 2025?
At $1,499, it's one of the stronger value propositions in the electric fat bike category right now, especially given the upgraded Tektro brakes, UL2271 battery certification, and comfortable ride quality. If you're a casual to intermediate rider who wants all-terrain capability without a $2,000 budget, yes, it's worth it. Riders who need more power, longer range, or better hill climbing should look at the Koa Rev+ 2 or RadRover 6 Plus instead.
How does the Koa Rev 2 compare to the Koa Rev+ 2?
The Koa Rev+ 2 is the upgraded sibling, priced $400 higher at $1,899. The key differences: the Rev+ 2 uses a 750W motor (vs 500W), a larger 720Wh battery (vs 500Wh), a torque sensor instead of a cadence sensor for smoother power delivery, and hydraulic disc brakes instead of mechanical. The Rev+ 2 also claims 72 miles of range. If you ride hilly terrain, carry cargo, or are a heavier rider, the Rev+ 2 is worth the upgrade. For casual riding and commuting on moderate terrain, the Rev 2 gets the job done at a better price.
What is the weight limit on the Retrospec Koa Rev 2 Step-Through?
The Koa Rev 2 has a maximum rider weight capacity of 300 lbs. That said, riders at the upper end of that range may notice the front suspension fork feels too soft, even at maximum preload adjustment. Heavier riders have reported a lack of firmness. If you're over 220-230 lbs and plan to ride rougher terrain, the Koa Rev+ 2 is likely a better fit.
Does the Retrospec Koa Rev 2 have a throttle?
Yes. The Koa Rev 2 includes a push-to-go throttle that operates independently of pedal assist. It lets you get moving without pedaling, which is handy at intersections or when you need a quick burst of speed. The throttle is governed at Class 2 speeds (20 mph). It's worth noting the throttle works best on flat terrain. On hills, you'll want to combine it with active pedaling for best results.
Video Review
Watch the Koa Rev 2 in action across pavement and light off-road terrain, including our range test and hill climb observations. A good companion to this written review if you want to see how the bike moves before committing.
